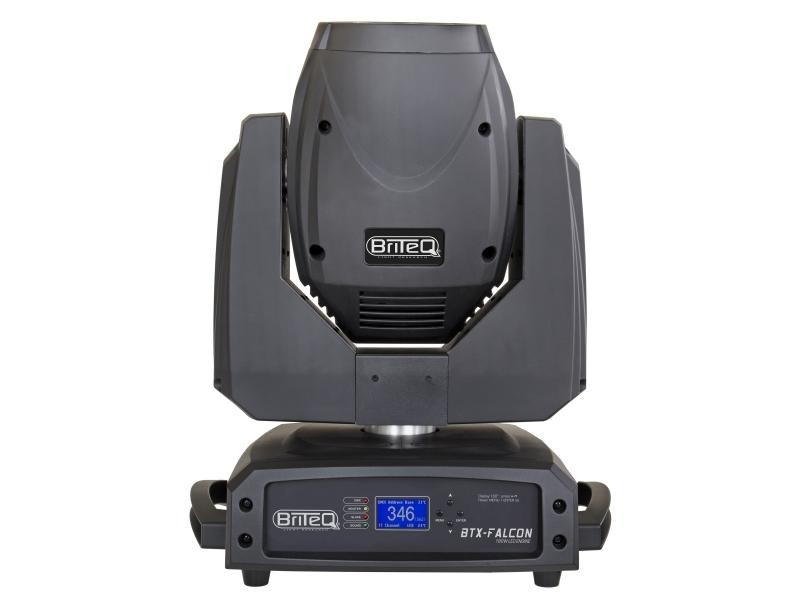

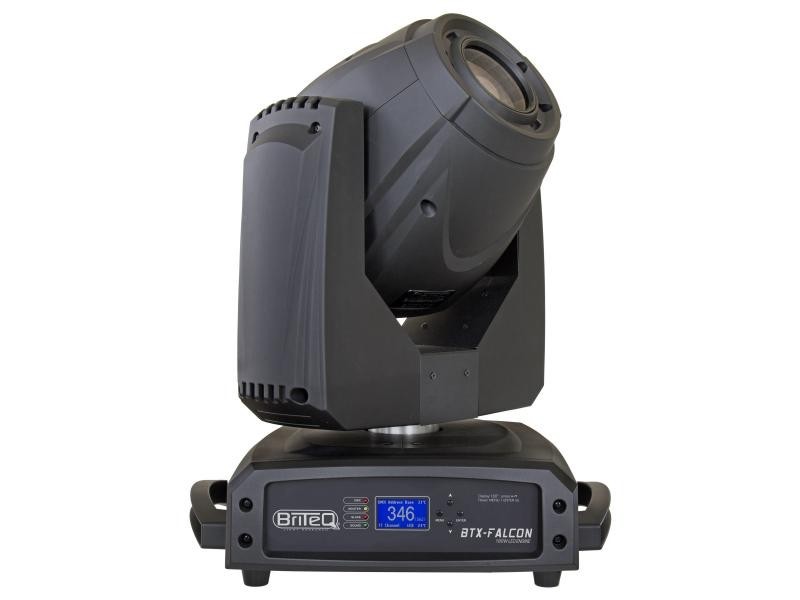

BTX-FALCON

Description

A very bright moving head projector based on a brand-new powerful 180W LED engine!
100% backward compatible with our famous BTX-180LS but with over 40% more lumen output !

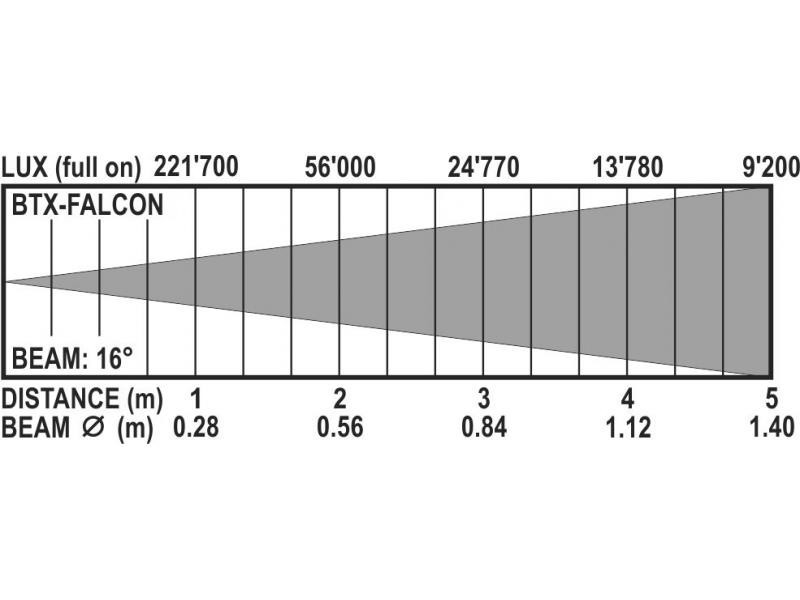

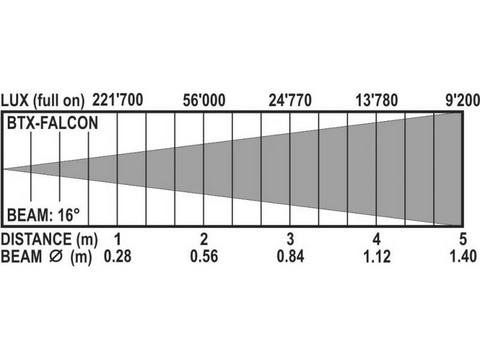

The use of advanced 16° optics guarantees an incredibly bright output: 56000 lux @ 2m
Perfect for rental companies, stage, discotheques, …
The very fast pan/tilt movements (540°/270°) assure very dynamic show programming.
8 or 16bit resolution pan/tilt resolution with X/Y position correction and pan/tilt speed channel.
Uses 17 DMX channels for an excellent range of possibilities and specs:
DMX-controlled electronic focus
DMX-controlled iris
2 gobo wheels for nice gobo overlay effects:
7 fast rotating gobos + open
8 fixed gobos + open
2 color wheels, each with 7 carefully selected dichroic colors + open
Extremely fast electronic dimmer/shutter
Fast rotating 3facet prism for special effects
Different strobe effects
Effect channel: remote lamp on/off control, different blackout functions, etc.
Works also in standalone & master/slave mode: the internal mic triggers the preprogrammed shows.
Neutrik PowerCON® in/outputs: easy daisy chaining of several units up to 16A.
Neutrik 3pin & 5pin in/outputs for maximum flexibility in a professional environment
Easy firmware updates keep your machine up-to-date at all times (optional firmware updater needed)
The matrix LCD-display assures easy navigation in the different setup menus
High efficiency and low power consumption, only 245W
Equipped with omega brackets for fast installation

Information Technique

Mains Input: AC 100 - 240V, 50/60Hz
Power consumption: 330 Watt
Fuse: 250V 6,3A slow blow (20mm glass)
Power connections: Neutrik® PowerCON® - 16A Power linking capacity.
DMX connections: 3pin-XLR & 5pin-XLR male / female
DMX channels used: 17ch
Lamp: 180W LED Engine
Beam Angle: 16°
Color wheel 1: 7 colors + open
Color wheel 2: 8 colors, including CTO 3200K, CTO 5600K and UV
GOBO wheel 1: 7 rotating gobos, replaceable by metal and glass gobos
Outer diameter: 26,8mm – Image diameter: 22,0mm
GOBO wheel 2: 8 fixed gobos, replaceable only by metal gobos
Outer diameter: 31,4mm – Image diameter: 22,0mm
IP-Rating: IP20
Operating temperature (Ta): 0°C to 40°C
Installation: 2 quarter turn quick clamps
Size: see drawing below
Weight: 17,5 kg
