512 output channels when used standalone without computer (max 4000 steps)

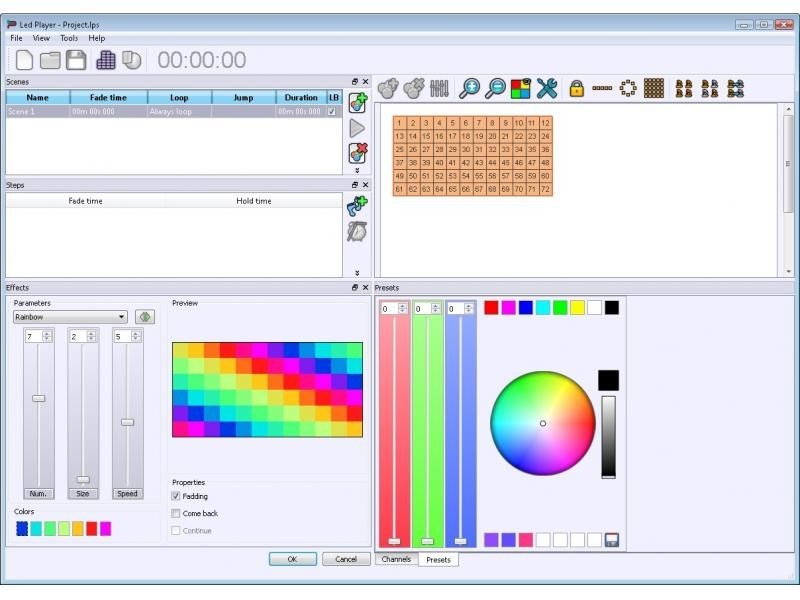

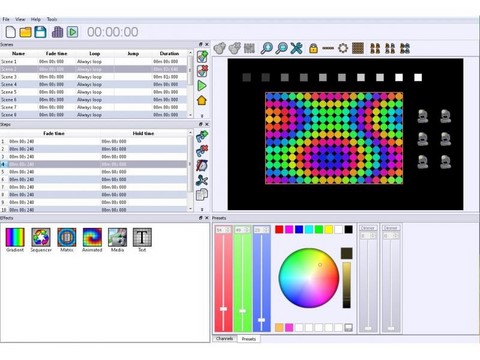

Works with the Chromateq Led Player and Chromateq Pro DMX software. (included)
Perfect for fixed or mobile installations

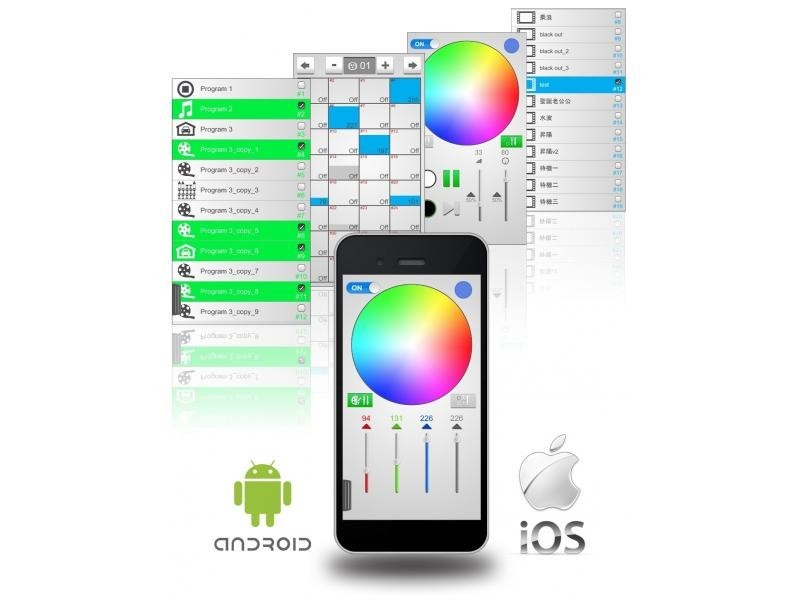

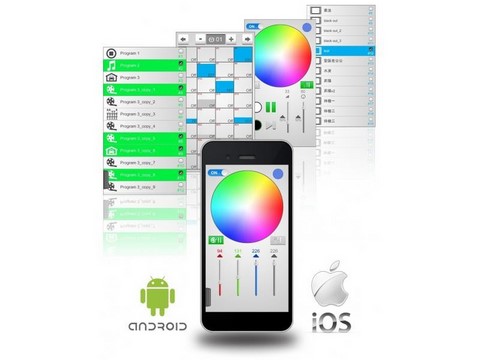

All the programs can be created via computer and stored into the interface. Once this is done, you can use the Wi-Light application on your smartphone or tablet to control the different functions and programs.
Scene selection list via Wi-Light
Live RGBW Color, speed and Dimmer adjustment via Wi-Light
Take manual live control or each individual channel
Other functions and in standalone mode:
Automatic Real Time Clock triggering for different scenes (day, week, month, year)
External Triggering via 15 contacts (4 wire mutiplexed)
3-pin XLR output connector
Comes with an external power supply (9-36V) for the use in standalone mode

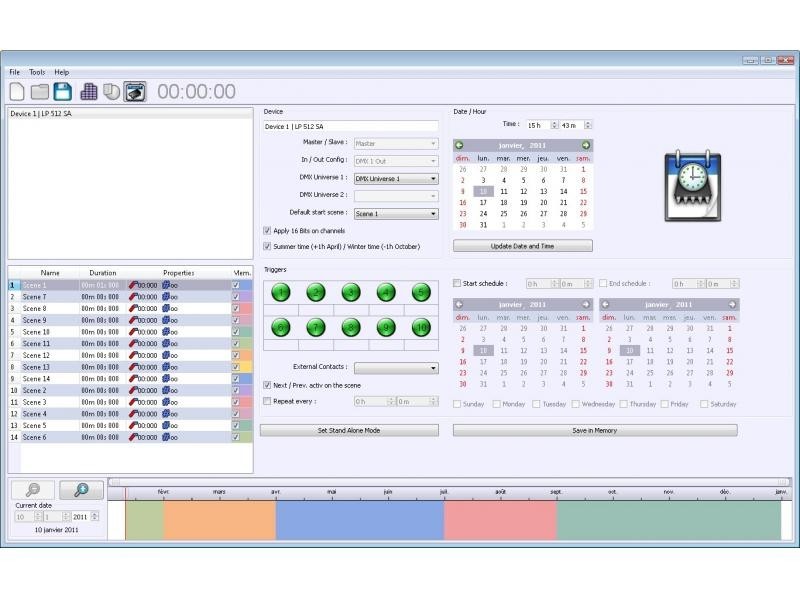

For more information about the software: www.chromateq.com

Information Technique

Power Supply: 9-36V
Power consumption: 2W
Input current: 60 to 175 mA
DMX output: 3-pin XLR
External Triggers: 4 contacts (5V), multiplexed to 15 contacts max.
Standalone capacity: 4000 steps with 512 Channels, 100000 steps with 16 channels
WIFI standard: 802.11 b/g/n compatible
Operating Frequencies: 2.4 - 2.497 GHz
Output RF Power: 8 +/- 1 dBm
Dimensions: 70 x 127 x 48mm
Weight: 250 g
