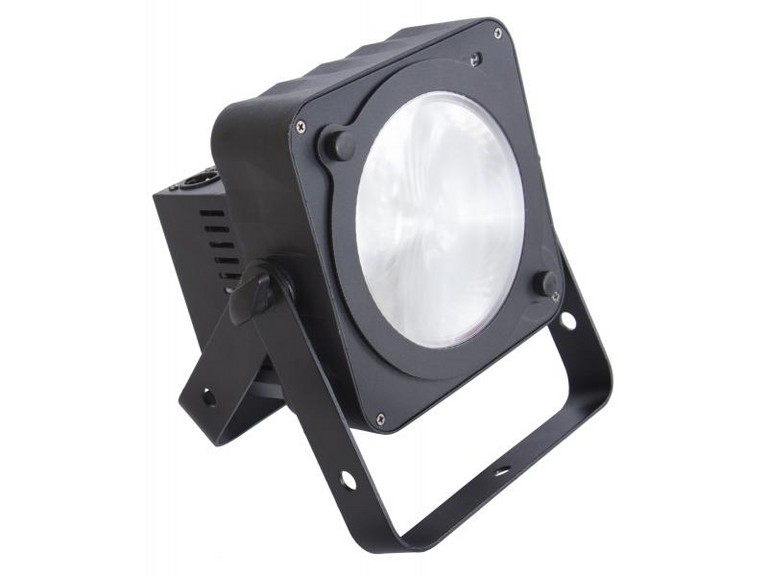

COB PLANO

COB PLANO


Description

Extremely compact energy saving COB LED-projector !
NO separate LEDs: equipped with a 36W COB LED assuring perfect color mixing and the look of a traditional lamp !

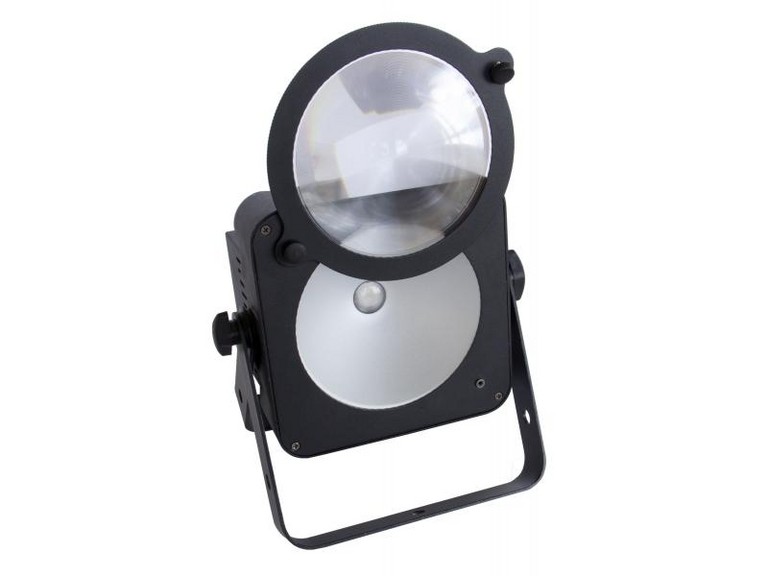

Two different beam angles: 100° wide angle or 15° while using the supplied lens.
IR-remote controller included: no difficult controllers needed, perfect for DJ's !
Different working modes:
Standalone with IR-remote: automatic / beat synchronized color patterns.
Master/slave mode: several projectors can be used together for wonderful preprogrammed, music synchronized lightshows.
DMX-controlled: different channel modes with program selection and individual RGB control.
Remote addressing can be done using the IR-remote !
Perfect for mobile applications: extremely small and very low
Many applications possible: Discotheques, DJs, rental companies, ...
0-100% dimming and ultra-fast strobe function (no additional strobes needed!)
4digit LED-display for easy menu navigation
Double bracket: easy for use as floor spot !
Can even be installed inside QUATTRO 290 ALU-truss AFTER the truss is installed !

Information Technique

Mains Input: 100-240Vac, 50/60Hz
Power consumption: 40 Watt
Fuse: 250V 1A slow blow (20mm glass)
Sound Control: Internal microphone
DMX connections: XLR 3pin
DMX modes: 3, 4 and 6 DMX Channels
LED Source: 36W COB LED
Beam angle without lens: 100°
Beam angle with lens: +/- 15°
Size: 202x120x224mm
Weight: 2 kg
