DMX Signal Merger (OCCASION)

Product Description

MERGER DMX mixes two DMX signals coming from two different input sources (A+B) into one DMX output.

DIP switches of MERGER DMX set up the merging mode, resulting in a unique output signal (from A+B inputs). It automatically changes DMX channel addresses to optimize available channels of the console. It also allows using a console as backup of another one.
The device provides three operating modes, each one with its own features:

HTP mode: when there are two input signals, the priority goes to the highest one.
Backup mode: Signal at A input goes to output, and if it disappears, it is substituted for B input signal.
Merge mode: the device allows mixing the two input signals in a unique output signal.

Features :

DMX signal merger for lighting control.
3 operating modes: HTP, Backup and Merge modes.
Operating modes and start channel address seleccionable by DIP switches.

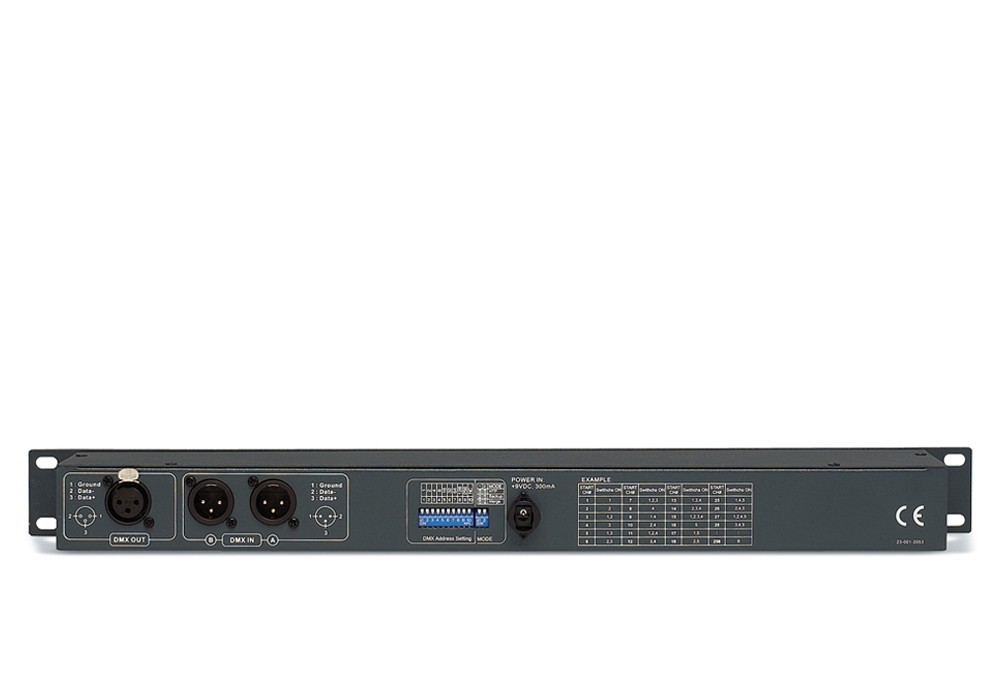

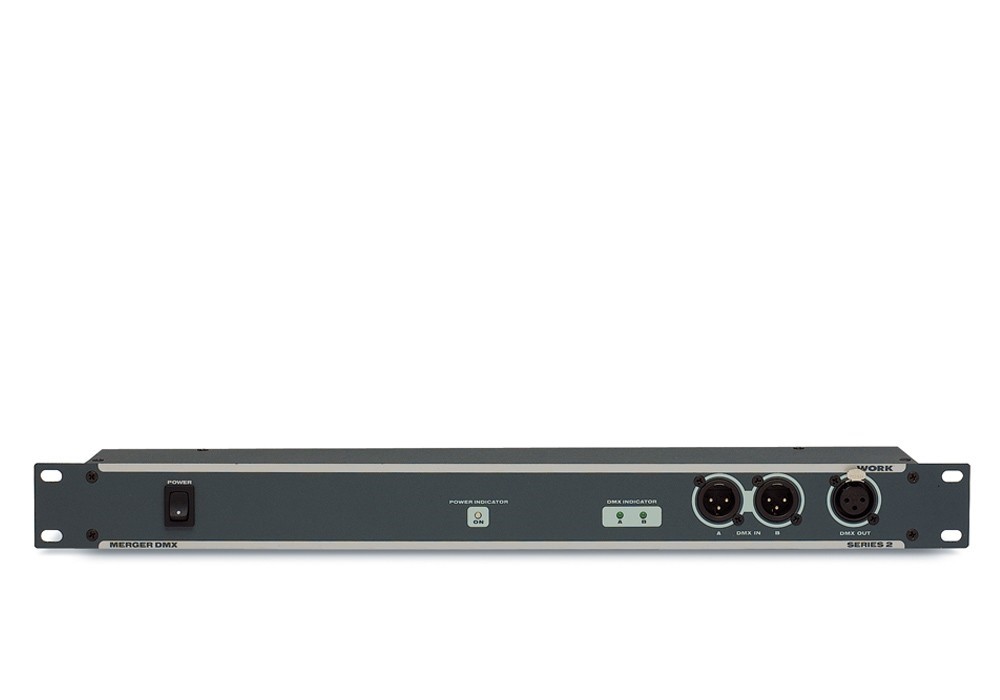

DMX inputs and outputs: Male XLR3 (In) and Female XLR3 (Out) on front and rear panels.
Main supply: DC 9 V, 500 mA (included).
Dimensions (WxHxD): 483 x 44 x 73 mm.
Weight: 1.15 kg.
