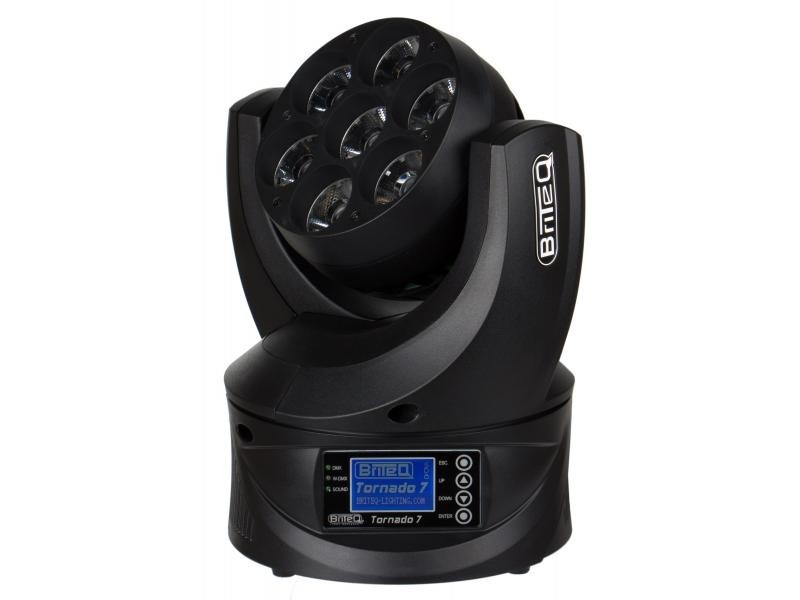

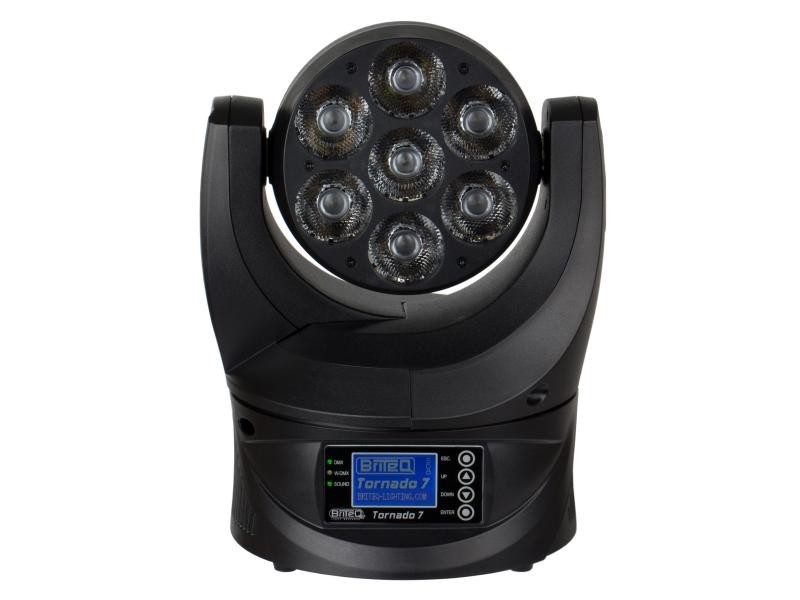

A very compact but powerful moving wash for rental companies, stage and discotheques
High speed ENDLESS ROTATION pan/tilt movements with 16bit resolution and automatic X/Y re-positioning for amazingly dynamic show programming.
Very bright 6° beam for maximum “beam effect" impact.
Optional frost filter available for use as “wide beam" wash projector
The 7pcs Osram® “OSTAR" 4in1 RGBW 15W leds with 4 zone pixel control!
Different preprogrammed color effects for fast show programming.
Precise dimmer with perfect color consistency over the complete dimmer range, down to zero output.
Linear color temperature correction from 2700K to 10000K
High speed strobe effect 0-25Hz
The multi-processor design assures enough processor capacity, even for the most demanding situations.
Two different 17ch and 34ch DMX channel modes for maximum flexibility.
An optional wireless DMX-module with “DMX to XLR transfer function" allows a cost-effective wireless DMX setup: the 1st unit in a DMX-line receives wireless DMX and sends it to the other connected units.
Automatic and sound controlled working modes, both in standalone and master/slave mode.
User programmable 16 scenes memory for standalone operation.
Neutrik® 3pin in/outputs for maximum reliability in a professional environment
Easy firmware updates keep your machine up-to-date at all times (optional firmware updater needed)
The Matrix LCD-display, combined with touch buttons assure easy navigation in the different setup menus.
Multilingual setup menu: English, French.
High efficiency and low power consumption, only 120W at maximum output.

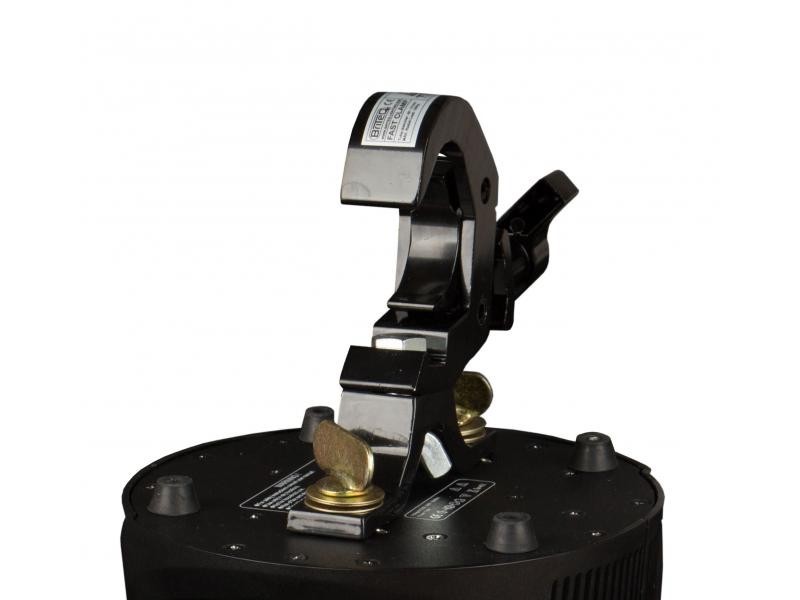

Equipped with an omega bracket for fast installation

Information Technique

Mains Input: AC 100 - 240V, 50/60Hz
Power consumption: 170 Watt (max, all LEDs on)
Fuse: 250V 3.15A slow blow (20mm glass)

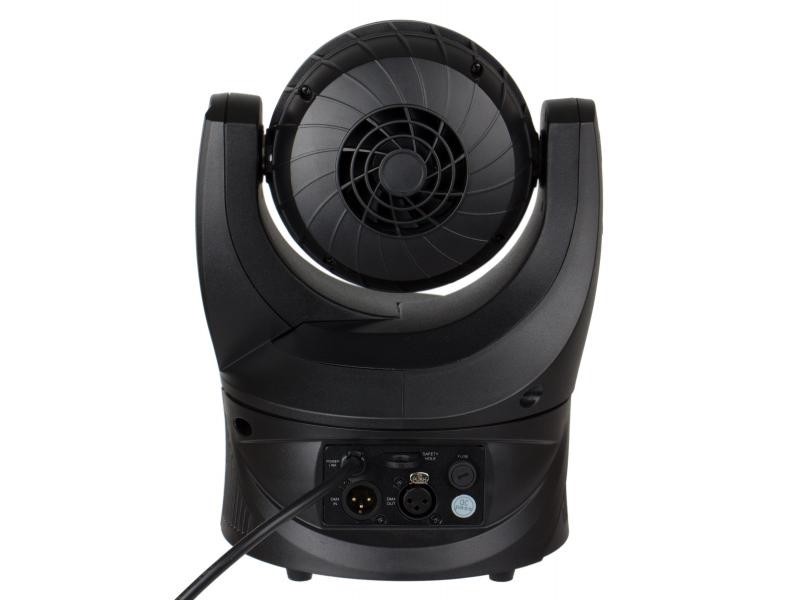

DMX connections: 3pin-XLR male / female
DMX channels used: 17ch, 34ch
Color temperature correction: 2700K to 10000K
Lamp: 7x 15W RGBW Osram OSTAR®

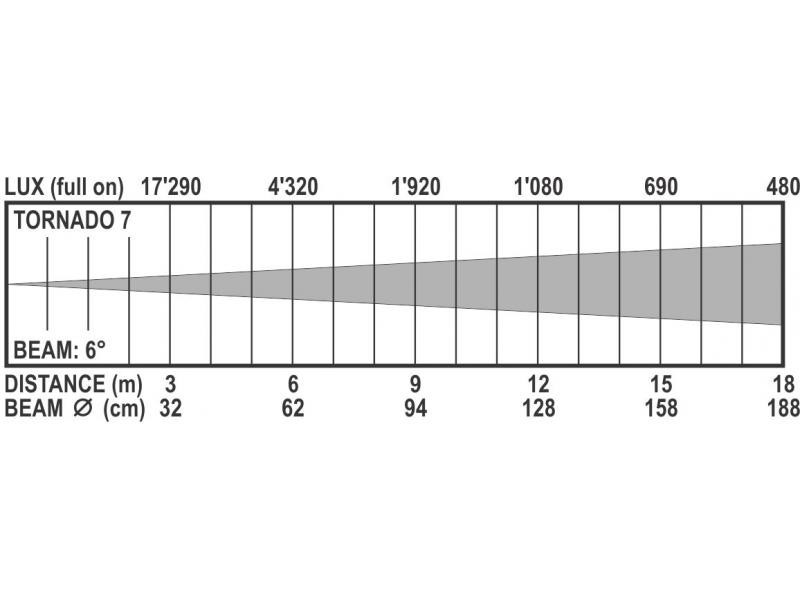

Beam Angle: 6° (field angle 12°) optional frost filter available.
Pan movements: 360°, 720° and endless rotation
Tilt movements: 270° and endless rotation
IP rating: IP20 (indoor use only)
Size: 224 x 224 x 296mm
Weight: 4,36 kg
