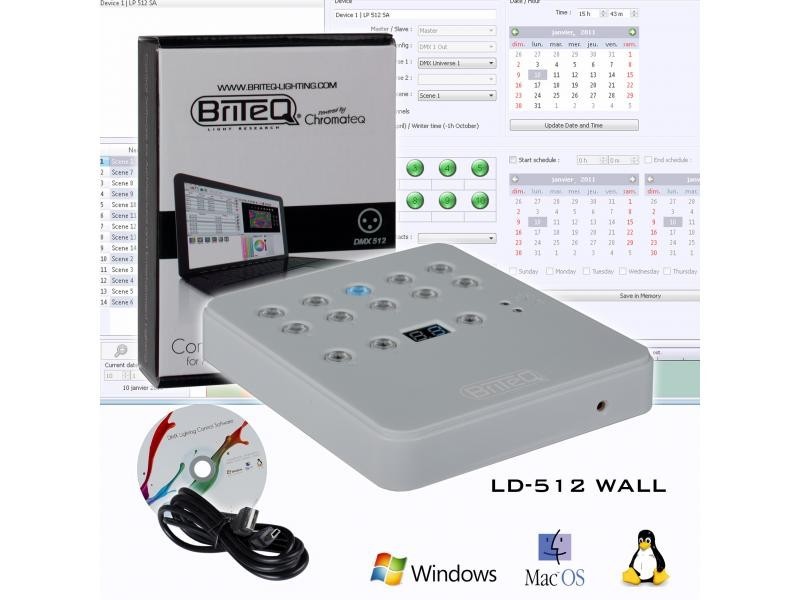

LD-512WALL

Description

512 Channel DMX interface for fixed architectural purposes
Can easily be mounted on walls of any surface.

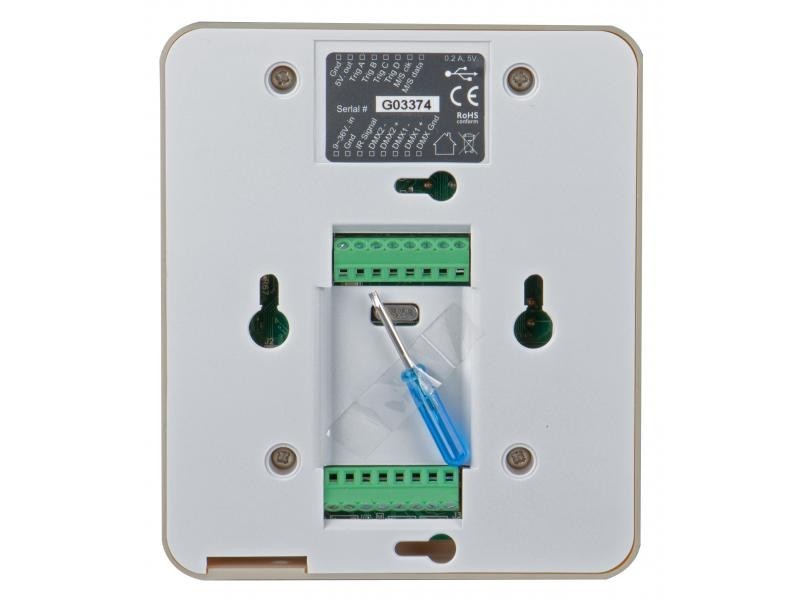

All the connections are on inside the back panel so no wires are visible.

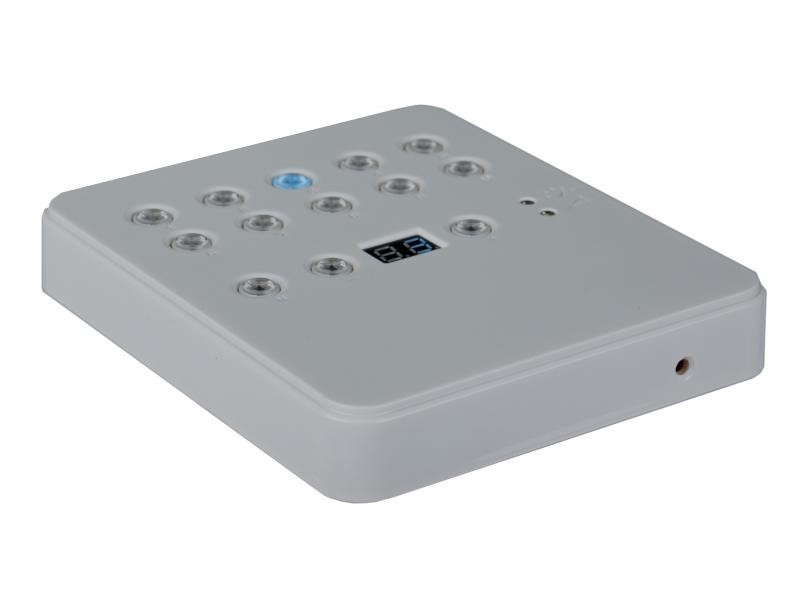

Nice white finish with blue diplay and blue led buttons for the activated functions

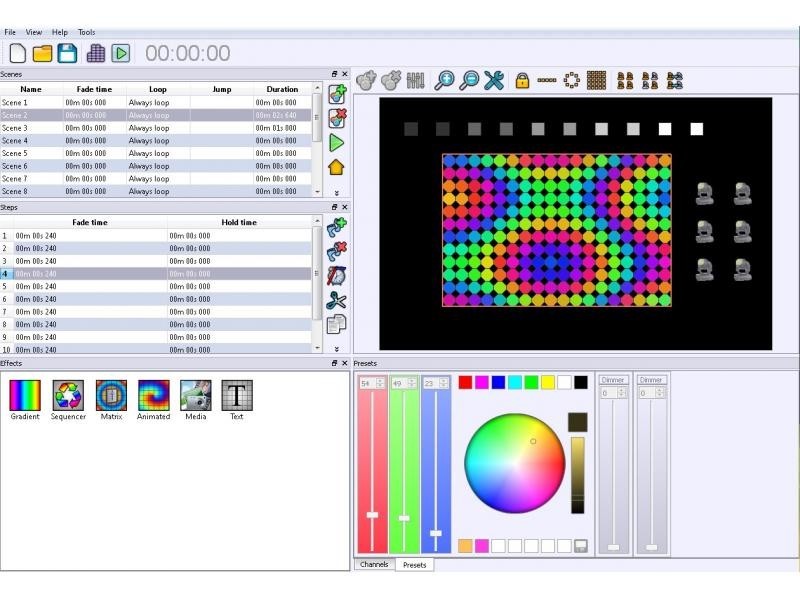

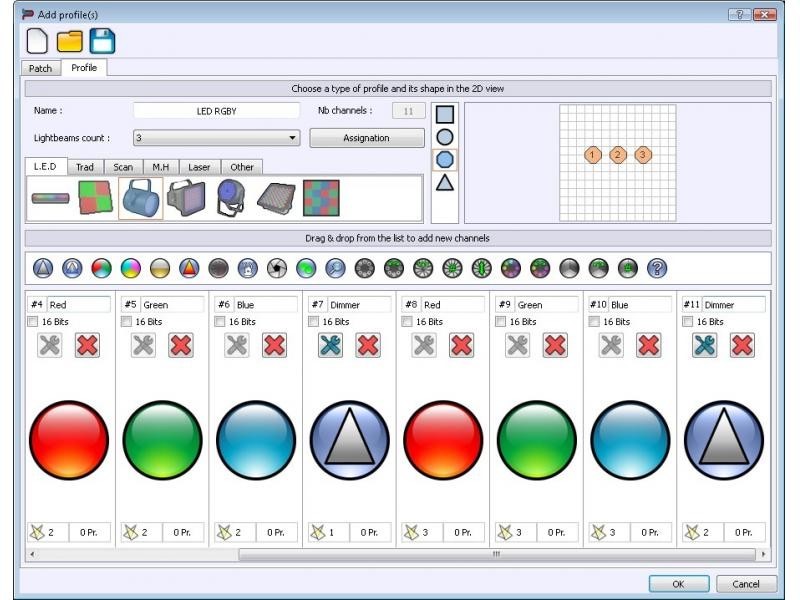

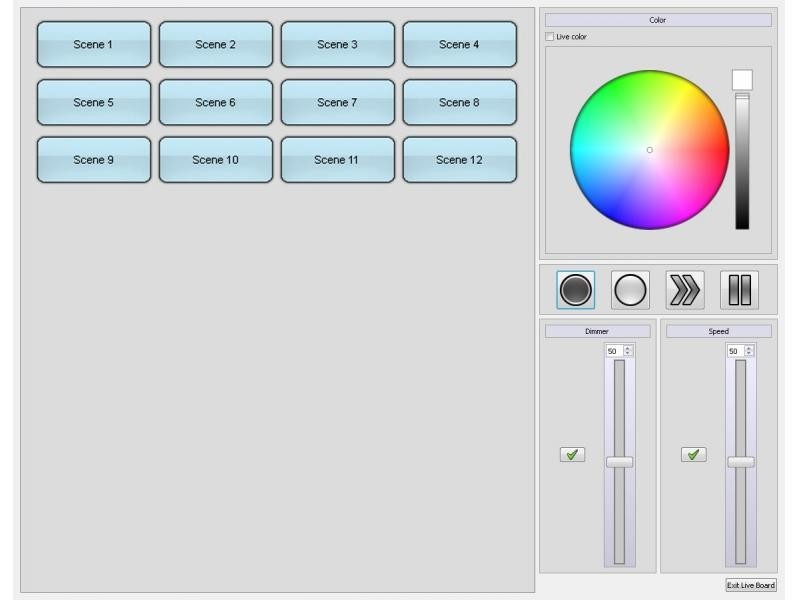

Works with the Chromateq Led Player software. (included)
All the necessary programs can be created via computer and stored into the interface. Once this is done, you only have to press the buttons to activate your programs.

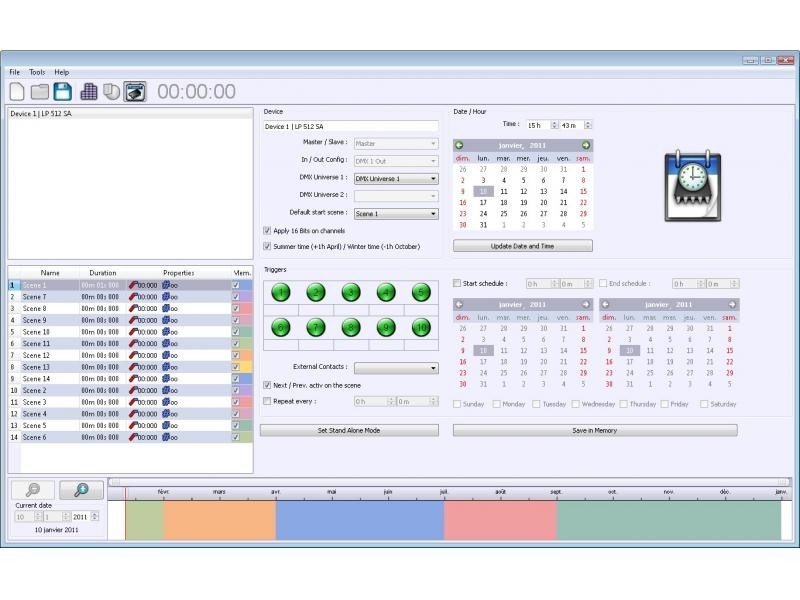

Automatic Real Time Clock triggering for different scenes (day, week, month, year)
Automatic scene recovery when the if the power was accidentally cut off
External Triggering via 15 contacts (4 wire mutiplexed RJ45)
10 switch buttons for direct triggering of your programmed scenes
Scene selection via the NEXT and PREVIOUS buttons
Set the Cross fade time between scenes
Speed and dimmer adjustment for each scene
Master/Slave mode for up to 16 interfaces connected together
USB cable included
An optional external infra-red receiver can be connected to the unit (LD-512Kit-IR = IR receiver + 2 remote controllers)
For more information about the software: www.chromateq.com

Information Technique

Dimensions: 110 (W) x 127 (H) x 19mm (D)
