LD-512DIN


Description

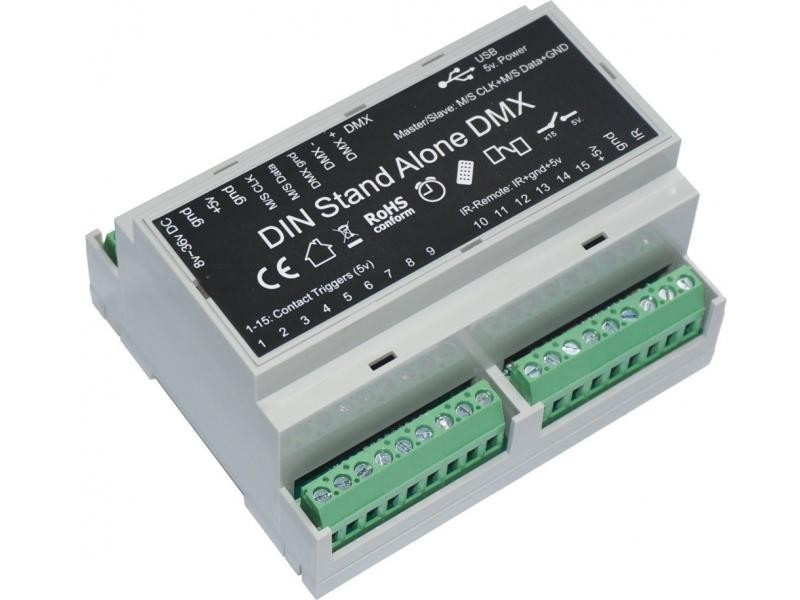

512 Channel DMX interface that can be easily mounted on a DIN Rail
512 output channels when used with a computer
512 output channels when used standalone without computer (max 4000 steps)

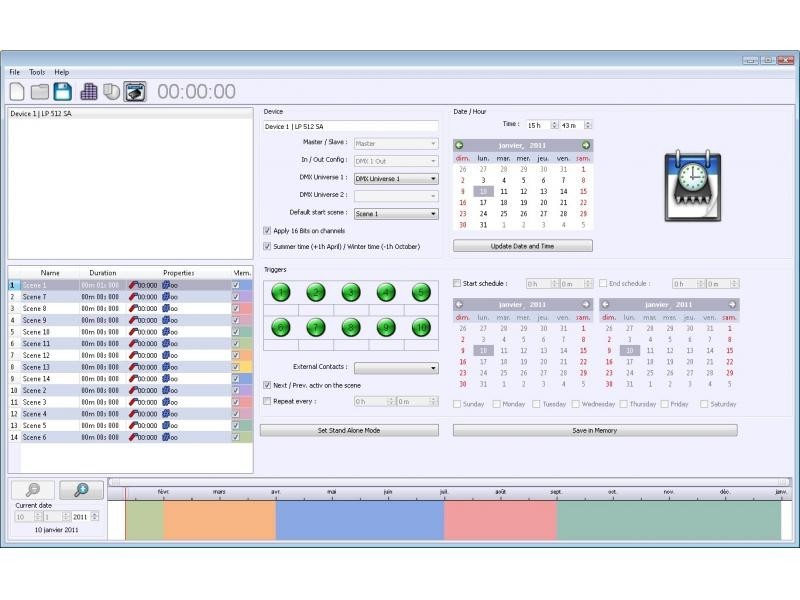

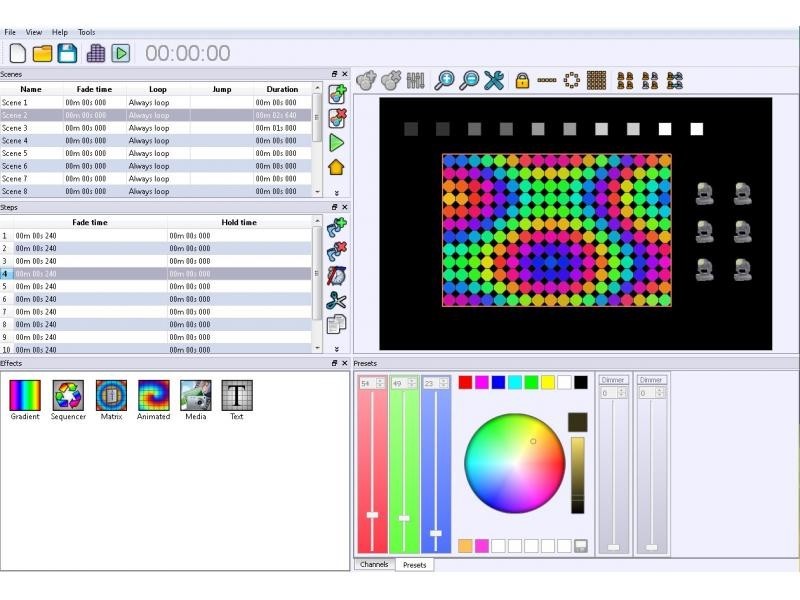

Works with the Chromateq Led Player and Chromateq Pro DMX software. (included)
Perfect for fixed installations: all the programs can be created via computer and stored into the interface. Once this is done, you can activate your programs via external switches or via the optional Infra-Red remote controller set.
Functions and control in standalone mode:
Automatic Real Time Clock triggering for different scenes (day, week, month, year)
External Triggering via 15 contacts (can be connected directly on the screw terminals)
An optional external infra-red receiver can be connected to the unit (LD-512Kit-IR = IR receiver + 2 remote controllers)
Master/Slave mode for up to 16 interfaces connected together
Mini USB cable included
For more information about the software: www.chromateq.com

Information Technique

Dimensions: 60 (L) x 100 (W) x 110mm (H)
